Quick Details

  • Light Source: LED
  • Item Type: Tube Lights
  • LED Light Source: SMD2835
  • Warranty(Years): 3
  • Input Voltage(V): AC85-265
  • Lamp Power(W): 18
  • Lamp Luminous Flux(lm): 1700
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 80
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -20 - 40
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP67
  • Certification: CE, FCC, RoHS, SAA
  • Place of Origin: China (Mainland)
  • Brand Name: hontech Indoor lighting for livestock, poultry
  • Model Number: T8
  • Driver Type: Min 92 percent
  • LED Chip Q'ty: 168pcs (1200mm)
  • LED light sources: Real Epistar 2835
  • Power Consumption: 18 watt
  • AC input voltage: 85 - 264Vac
  • Luminous Flux: 1700LM max
  • Operating Temperature: below 20 abover
  • Item: Farm Lights
  • Color Temperature: 2700-6500K Option
  • Key Words: Indoor lighting for livestock, poultry

Packaging & Delivery

Packaging Details: per Carton: 25 Pieces / Carton
Package Measurements: 128X23X23 CM
Gross Weight: 15.00 KG
Package Size per Unit: 0X0X0 CM
Gross Weight per Unit: 0.00 KG / Piece
Package Type: 1.25pcs each carton 2.1200mm led tube light.
Indoor lighting for livestock, poultry
Delivery Detail: Within 5 working days after payment.

Chicken Farm LED Dimming System LED Lighting Solutions for Agriculture Indoor lighting for livestock, poultry











 Poultry light with dim technology







The Tube is specifically for poultry applications



Hontech Chicken farm T12 lights for broilers were created to help poultry operators significantly reduce electricity costs, decrease labor and maintenance costs, and increase flock performance.  Hontech Chicken farm T12 lights are more energy efficient than fluorescent, incandescent, and HID counterparts. The savings can provide a fast return on investment, especially when considering the potential availability of energy efficiency rebates.



Compared to other barn lighting systems, these lights provide reduced heat generation, and can dim down to 5% which is especially important for maximizing grow out. The wet location rated modular design allows for easy installation in a wide range of applications.



How lighting can enhance flock performance



This is the first line of broiler lights that takes advantage of the visual response of domestic fowl. Because birds are sensitive to different intensities and colors of light, performance can be affected by controlling the lighing. The smooth dimming and color modulation of these lamps allows them to be easily controlled by standard barn dimmers.







  • T12 tube lights is mainly used in chicken farm, carpacking, pig houses, hen house, Poultry farm.
  • The tube is certificated by SAA, CE, ROHS, IP67
  • The tube with performance up to 120lm/W, and light efficacy up to 88%
  • Meet IEC VDE safety standard with built-in isolated driver and Hi-Pot testing up tp 3850V.
  Application
 Description

Model No.Type of DriverPowerLED infoTotal LengthLumensRemark
HT-T12AC25W12FD180-264Vac@Dimmable
100-265Vac@Non-dimmable
25WSMD2835 132pcsL:1200mm OD32mm3000Lm MaxIP67
HT-T12AC30W15FD30WSMD2835 168pcsL:1500mm OD32mm3600Lm MaxIP67



Type Of Power Supply(1)Isolated Design
Type of power supply(2)Dimmable or non-dimmable
End cap typewaterproof(IP67)
Pin TypeCable
Materials of Tube housingPC
Cover finishedClear, or Milk white

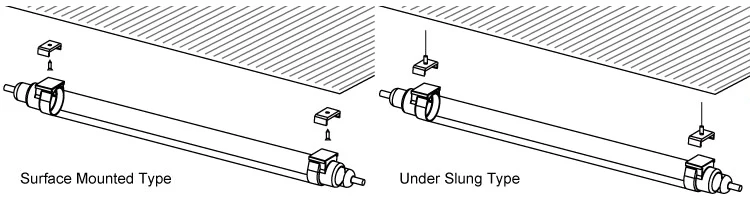

   Installation





1) This unit MUST be installed and wired by a qualified electrical contractor.

2)  Please cut the power off when install and remove the products to avoid risk of electric shock

3) Ensure that the fixed plate should be firmly afford 2kg.

4) Each LED tube should be not less than 2pcs screw or bolt.

5) Fixture control gear/AC cable MUST BE MOUNTED ABOVE any insulation covering and waterproof box.

6) Do not directly at LED light source for a long time.




Electrical Characteristics
Rated Voltage180-265Vac
Rated Wattage15w 20w 25w 30w
DimmabilityDimmable, 0-100%

Light intensity between lighting periods is be adjusted in gradual manner

Dimmer at least 15 minutes.(Meet RSPCA standard)
 Control Signal 0-10V, DMX singal
 Safety Standard SAA, C-tick, CE, ROHS
